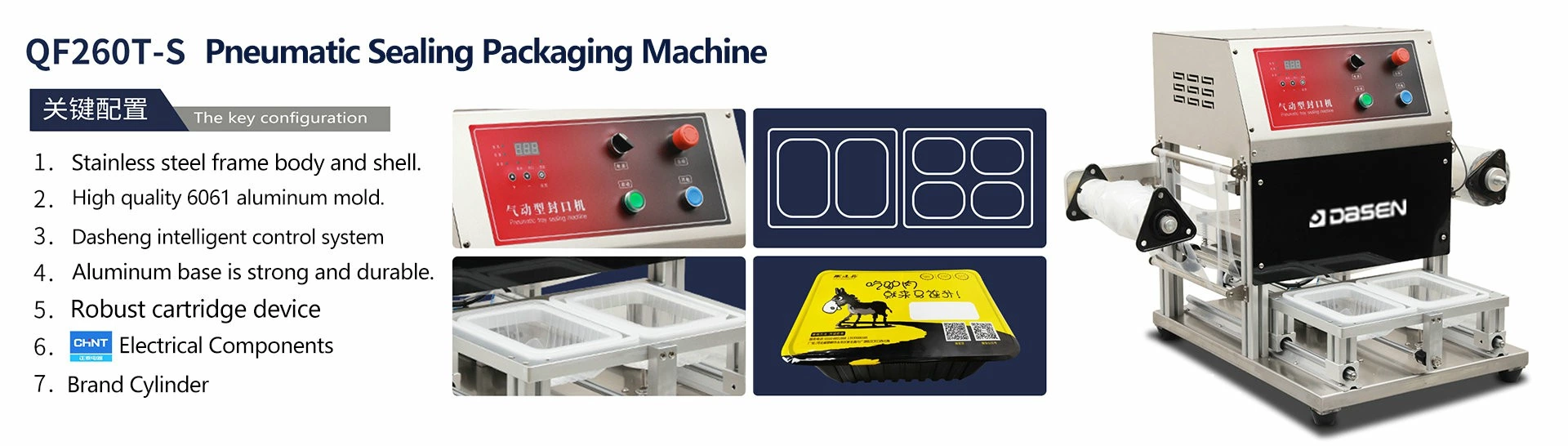

DQ260T-S PNEUMATIC TRAY SEALING MACHINE
DQ260T-S pneumatic tray sealing and packaging machine we manufactured, is suitable for factory packaging of ready-to-use foods such as stores and supermarkets or all kinds of quick-frozen foods. The table top machine is simple to operate, while trays are not filled with fresh-keeping gas after sealed. The main structure of the product is made of stainless steel, and the mold is anodized with 6061, which is safe and sanitary. Desktop structure design, small floor area. According to different production requirements, our factory can customize the equipment as per your requirement, and help you sell the machines to end users.
* Molds customized for the popular tray sizes in your territory for your marketing penetrating, with free charge.
* Stainless steel and anti-corrosive aluminum construction.
* Sealing temp/time etc. can be easily adjusted on control panel.
* Easy to operate, and neat cutting and sealing of film, pneumatic drive.
* Precise and automatic film feeding with photoelectric and disc sensors.
* Safe and hygienic, CE certification.
* Supply training video and after-sales service online with quick response.
* Voltage/plug type can be customized as required.
* Package material: trays made from Degradable pulp box/ PP / PET/Aluminum foil, and we could supply tray+film according to your size and print if needed.
Expertise sales manager ready for helping to prompt your business:
We are a reliable Chinese manufacturer with good quality and ODM OEM business are welcome!
If you order more than 5pcs, there will be more competitive prices and marketing support.
| Technical parameter | PNEUMATIC TRAY SEALING MACHINE | ||
| Equipment model | QF260T-S | QF370T-S | QF430T-S |
| Maximum width of roll film (mm) | 260 | 370 | 430 |
| Maximum diameter of roll film (mm) | 200 | 200 | 200 |
| Capacity (box/hour) output 1 | ≈360 | —— | —— |
| Capacity (box/hour) output 2 | ≈640 | ≈640 | ≈640 |
| Capacity (box/hour) output 4 | —— | ≈1200 | ≈1200 |
| Power supply (v/hz) | 220/50 | 220/50 | 220/50 |
| Total power (kw) | 1.1 | 2.1 | 2.5 |
| Working air pressure (Mpa) | 0.6～0.8 | 0.6～0.8 | 0.6～0.8 |
| Equipment weight (kg) | 65 | 100 | 130 |
| Equipment size L × W × H(mm) | 950×780×660 | 1020×950×660 | 1100×1130×740 |
| Gross weight of package (kg) | 110 | 135 | 165 |
| Packing box size L × W × H(mm) | 980×860×850 | 1080×1020×740 | 1350×1200×1000 |
| Maximum size of tray (mm) out of 1 | 310×200×60 | —— | —— |
| Maximum size of tray (mm) out of 2 | 200×140×60 | 310×200×60 | 370×260×110 |
| Maximum size of tray (mm) out of 4 | —— | 200×140×60 | 260×170×110 |
